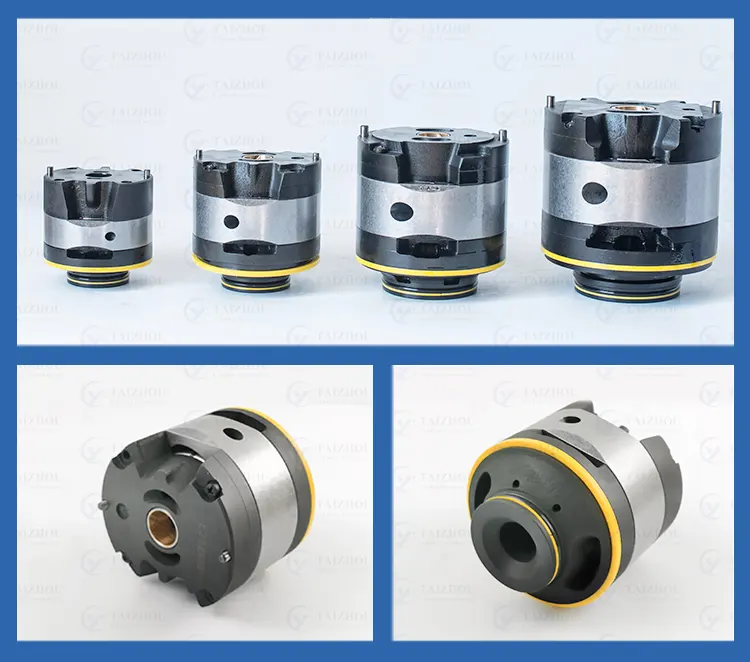

Eternal Hydraulic V & VQ Series Vane Pump Cartridge Kit Parts
Eternal Hydraulic supply hydraulic vane pump and parts of cartridge kit. V Series hydraulic vane pump are known for their low noise, durability and efficiency. Intravane pumps provide longer life, increased productivity and application versatility. Extremely low sound levels are compatible with the most demanding industrial applications.VQ series are designed for higher pressure and higher speed mobile requirements. With an intra-vane cartridge design, provide long operating life, outstanding volumetric efficiency and excellent serviceability.
Model Code
V/VQ/SQP Pump Kit
| (F3-) | PC- | 20VQ | -5 | -R | -10 |
| 前注 Front marks |
泵芯标记 Pump core marks |
系列号 Models |
排量代号 Displacement code |
旋转方向 Direction of rotation |
设计号 Designing No. |
| 无标记： 丁睛橡胶 No mark: Nitrile rubberF3:氟橡胶 F3: Fluoro rubber |
PC-单泵泵芯&双联泵前泵芯 PC-Single Pump kit & Double Vane pump front kitPCT-双联泵后泵芯 PCT-Double vane pump rear kit |
20V 20VQ SQP1 |
2,3,4,5,6,7,8,9,10,11,12,14 | (从泵的轴端看) (from shaft end pump)L-逆时针旋转L-counterclockwise rotationR-顺时针旋转 R-clockwise rotation |
10 |
| 25V 25VQ SQP2 |
10,12,14,15,17,19,21 | ||||
| 35V 35VQ SQP3 |
21,25,30,32,35,38,45 | ||||
| 45V 45VQ SQP4 |
42,45,50,57,60,66,75 |
Dimension
Application of V&VQ Vane Pump
V Series
-
- Presses
- Aerial booms
- Primary metals
- Industrial power units
- Material handling machines
- Plastic injection molding machines
- Other medium-pressure industrial applications
V Series
-
- Wheel loaders
- Lift trucks
- Refuse trucks
- Aerial booms
- Other high-pressure applications

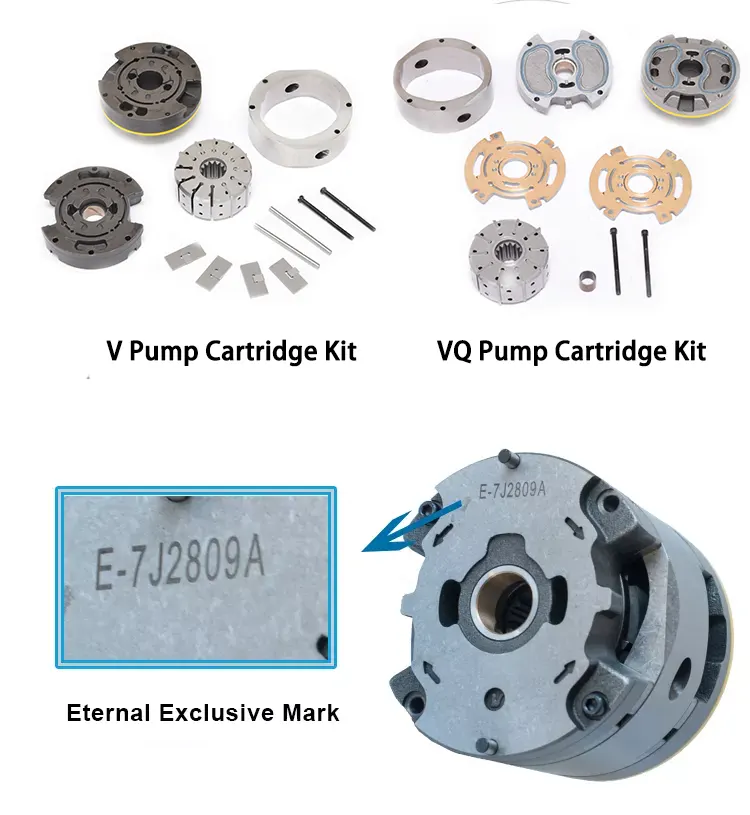

Features of Eternal Vane
Cartridge Kit
-
- high pressure and low noise
- replace Eaton Vickers V /VQ seires cartridge
- with Eternal “E” Mark
V
-
- High operating pressure capabilities in compact packages provide high power to weight ratios and lower installed costs.
- Low noise characteristics inherent in intravane design
- enhance operator comfort.
- Twelve vane system provides low amplitude flow pulsations resulting in low system noise characteristics.
- Hydraulic balancing, designed to prevent internally-induced radial shaft and bearing loads, provides long life.
- Double pumps and thru-drive arrangements save installation space and cost by eliminating double shaft extension electric motors or by reducing the number of motors and drive couplings.
- Thru-drive models provide valuable circuit design flexibility, such as having fixed and variable displacement models on a single input drive.
- Sixteen flow displacements and high operating pressure
- capabilities provide optimum selection and single-source capability for your complete range of flow and pressure requirements.
- Factory tested cartridge kits provide new pump performance upon installation.
- The cartridge kit design offers fast and efficient field serviceability. The cartridge is independent of the drive shaft,
- allowing for easy change of flow capacity and servicing without removing the pump from its mounting.
- Inlet and outlet ports can be oriented in four different positions relative to each other, providing greater installation flexibility and ease of machine design.
VQ
-
- 10-vane systems
- Solid architectures in the same envelope size
- Many available bearing and valve options
Advantages of Eternal Hydraulic Vane Pump
- Completely interchangeable with origina hydraulic vane pump with very competitive price
- 1 year of warranty
- Short delivery time
