Eternal Hydraulic SBSG Low-Noise Solenoid Control Relief Valve

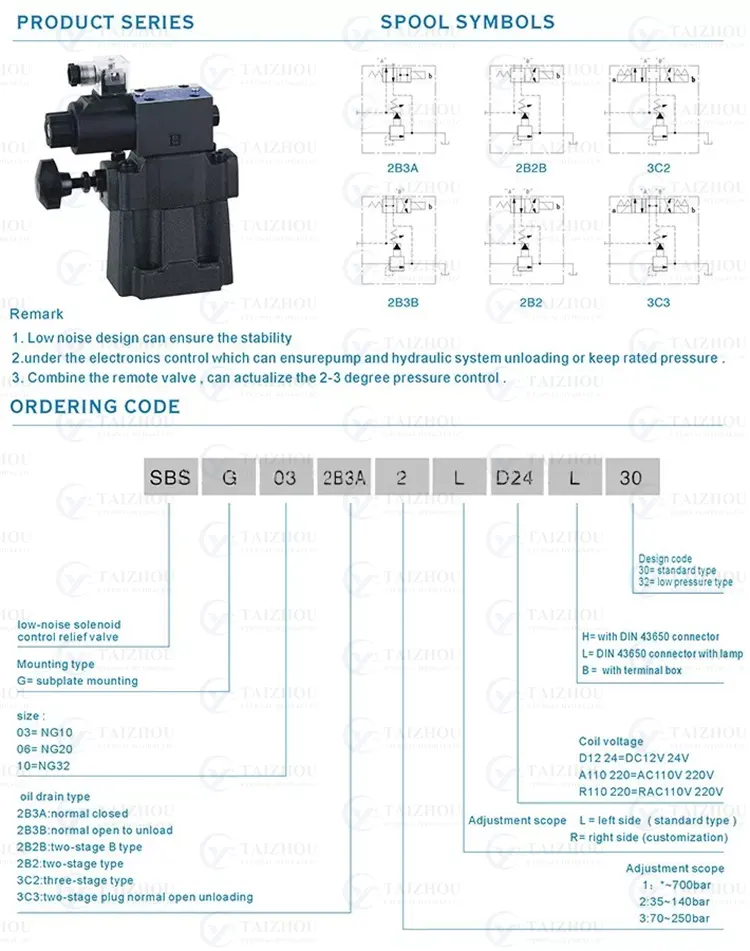

Modle Code
| SBS | G | 03 | 2B3A | 2 | L | D24 | L | 30 |
|---|---|---|---|---|---|---|---|---|
| 电磁控制溢流阀
Low- noise |
安装方式
Mounitng type |
公称通径
Tenninal size |
排油方式 Oil Drain Type |
调整范围
Adjustment scope |
旋钮调整位置 Knob adjustmentposition |
线圈电压 Coil Voltage | 插头 Lamp |
设计代号
Design Code |
| G :板式安装 G:Subplatemounting |
03:10 通径 06:20 通径 10:32通径 03=NG10 06=NG20 10=NG32 |
2B3A：常闭保压 normal closed2B3B: 常开卸荷 normal open to unload2B2B: 两段B式 two-stage B type2B2：两段式 two-stage type3C2：三段式 three-stage type3C3：两段式加常开卸荷 two-stage plug normalopen unloading |
1: *-70 bar 2: 35-140 bar 3: 70- 250 bar |
空白：左 R：右 Blank: Left side R: Right side |
D12 24= DC12V 24V
A110 220= AC110V 220V R110 220= RAC110V 220V |
H: DIN43650 插头 H: DIN43650 connectorL: DIN43650 带灯插头 L: DIN43650 connector with lampB:接线盒 B: with terminal box |
30：标准型 32：低压型 30: Stan- dard 32: Low- pressure type |
