Eaton PVE Series Piston Pump

Eternal Hydraulic PVE Series Piston Pump of Eaton Vickers

Featuring a die-cast aluminum housing to reduce weight, Eaton PVE Series pump are the perfect hydraulic solution for unsupported PTO drive applications whether in the field or on the warehouse floor. They’re available with widely-used options—including mobile pressure compensation, pressure and flow compensation, and remote pressure control—to increase their versatility across a broader range of applications.

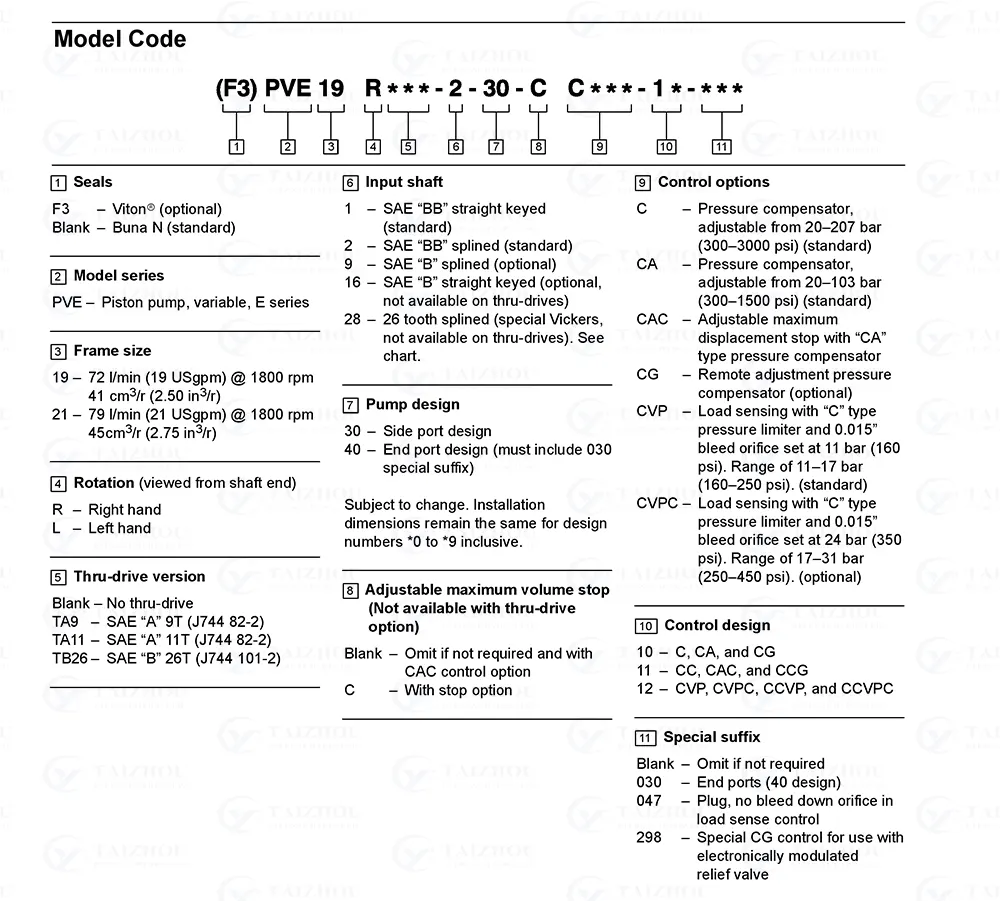

MODLE CODE

The PVE series is available in 3 displacement sizes(PVE12 Variable Displacement Single Pump & PVE19 / PVE21 Variable Displacement Single & Thru-Drive Pumps):

• PVE12: 25 cc/rev; rated input speed 3000; maximum pressure 210 bar / 3000 psi;
• PVE19: 41 cc/rev; rated input speed 2400; maximum pressure 210 bar / 3000 psi;
• PVE21: 45 cc/rev; rated input speed 2400; maximum pressure 186 bar / 2700 psi.









Related Product of Eaton Piston Pump

→PVB Series Piston Pump

→PVXS Series Piston Pump





Features

Eaton Vickers PVE series (‘E’ series) piston pumps are inline, variable displacement pumps. These pumps have a die-cast aluminum housing to reduce weight. They are ideal for use in unsupported PTO drive applications. Options for this particular pump include: mobile pressure compensation, pressure and flow compensation, and remote pressure control.

• Aluminium housing for allows for durability and  a light weight;
• Many configurations enable customisation for certain applications;
• Displacement is varied by pressure/flow compensator controls;
• Optional controls for maximum operating flexibility;
• Thru-drive available on PVE 12/19/21/4*
