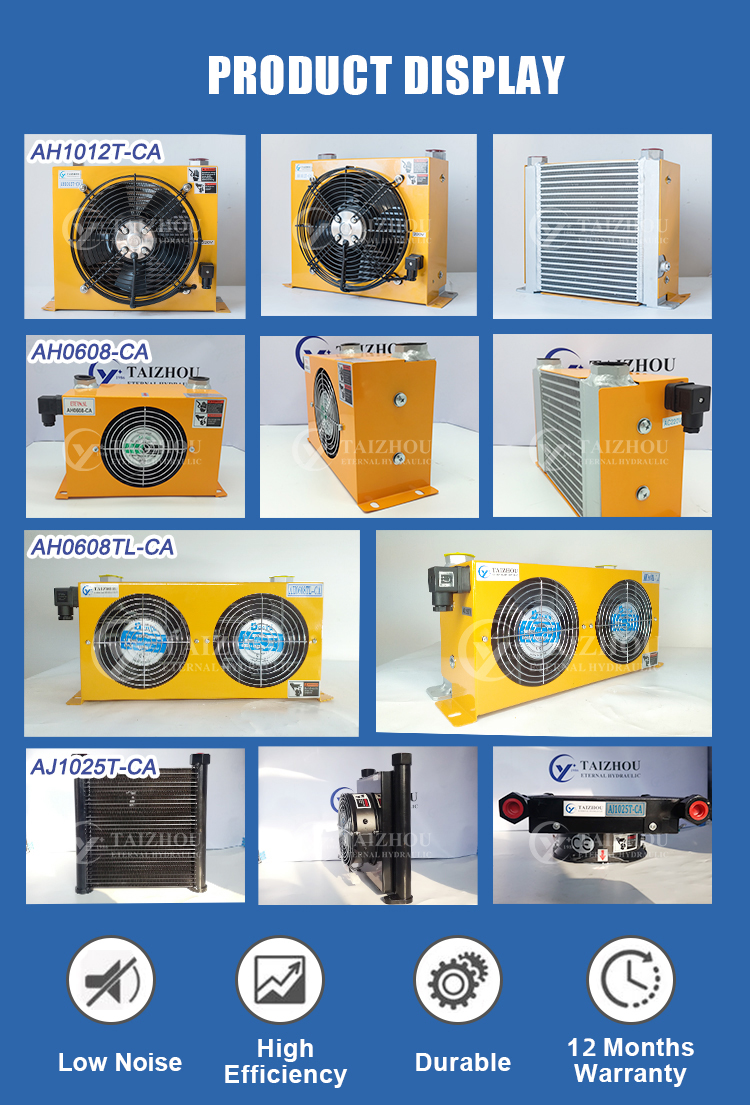

Eternal Hydraulic AW/AH Series Aluminum Air Cooler
One way to reduce the temperature within hydraulic systems is with the use of air. Did you know that air cooled hydraulic oil coolers dispel heat by forcing cold air over hot fluid found inside a heat exchangers coil or core. Often known for their low running costs this type of cooler is simple to maintain too!
Best quality oil coolers provided, can replace the international brand, including the COOLBIT,OLLLT…
Model Code
| 型号 Model |
牙口 RC/PT” |
流量(L/min) Rate of flow | 风扇功率 (W) Fan power |
冷却能力(KW) Cooling capacity | 散热面积 (M2) Cooling area |
包装尺寸 (cm) Packing size |
重量(Kg) Weight | 风扇电压 Fan voltage |
|---|---|---|---|---|---|---|---|---|
| AW0607T-CA | 1/2″ | 20 | 34 | 1.1 | 0.8 | 28*21.5*13 | 4 | AC110V/220V-240V/380V DC12V/24V 50Hz |
| AH0607T-CA | 3/4″ | 40 | 34 | 1.05 | 1 | 28*21.5*13 | 5 | |
| AH0608T-CA | 3/4″ | 60 | 34 | 1.8 | 1.3 | 35*22.5*14 | 6 | |
| AH0608TL-CA | 3/4″ | 60 | 2*34 | 2.4 | 1.8 | 44*22*15.5 | 7 | |
| AH0609T-CA | 3/4″ | 90 | 34 | 5 | 3.1 | 50*43*22 | 11 | |
| AH1012T-CA | 1″ | 100 | 45/52 | 5.8 | 3.2 | 44.5*37*22 | 12 | |
| AH/AJ1012T-DC | 1″ | 100 | 45/52 | 5.8 | 3.2 | 44.5*37*18 | 12 | DC12V/24V |
| AH1417T-CA | 1″ | 150 | 142/135 | 8 | 6.2 | 58*45*38 | 25 | AC110V/220V240V/380V 50Hz |
| AH/AJ1417T-DC | 1″ | 150 | 216 | 8 | 6.2 | 58*45*30 | 25 | DC12V/24V |
| AH1470T-CA | 1 1/4″ | 200 | 142/135 | 8.8 | 8.3 | 58*45*38 | 26 | AC110V/220V240V/380V 50Hz |
| AH/AJ1470T-DC | 1 1/4″ | 200 | 216 | 8.8 | 8.3 | 58*45*30 | 26 | DC12V/24V |
| AH1490T-CA | 1 1/2″ | 250 | 142/135 | 11.5 | 10.5 | 58*45*38 | 29 | AC220V-240V/380V 50Hz |
| AH/AJ1490T-DC | 1 1/2″ | 250 | 216 | 11.5 | 10.5 | 58*45*38 | 29 | DC12V/24V |
| AH1680T-CA | 1 1/2″ | 300 | 423/448 | 19 | 14 | 85*66*42 | 55 | AC220V-240V/380V 50Hz |
| AH2413T-CA | 1 1/2″ | 450 | 836 | 34 | 33.2 | 95*75*43 | 73 | AC380V/50HZ |
| AH3818T-CA | 1 1/2″ | 600 | 1494 | 58 | 48.2 | 105*97*55 | 103 | |
| AH3-2583T-CA | 1 1/2″ | 400 | 120KW | 3*0.75/1.5/ 2.2KW |
77.2 | 240*85*66 | 300 | AC220V380V 50Hz |
| AH1890 | 1 1/2″ | 250 | 2*150 | 26 | 15.8 | 85*68*35 | 55 | |
| AW系列–可用于高压可变量活塞泵的泄油口，或独立循环冷却回路。 AW Series–it suitable for port of high pressure variable displacement piston pumps, or independent loop AH系列–可以用在油压系统的回油回路，但是必须加装旁通泄压回路。最大静态压力：20kgf/m2 AH Series–it suitable for reture loop of hydraulic system, but must bave bypass press relief loop. Max. static state pressure: 20kgf/m² |
||||||||
→Air Cooler PDF
Application
Widely used in Engineering Machinery, Agriculture Machinery, Metallurgical Machinery, Industrial Machinery, Hydraulic Unit…
Features of Eternal Hydraulic Air Cooler
The tube thickness≤0.3mm, fin thickness≤0.12mm, plate thickness≤1.5mm.
AW Series: it suitable for port of high pressure variable displacement piston, or independent loop.
AH Series: it suitable for reture loop pf hydraulic system, but must bave bypass press relief loop.Max static state pressure: 20kgf/m².
The air cooler are made of aluminum alloy material with light weight, good seismic intensity, high heat transfer efficiency. In the structure fo the channel, adopting the efficient fin, the maximum increase the heat transfer area, increase the total heat transfer coefficient.
