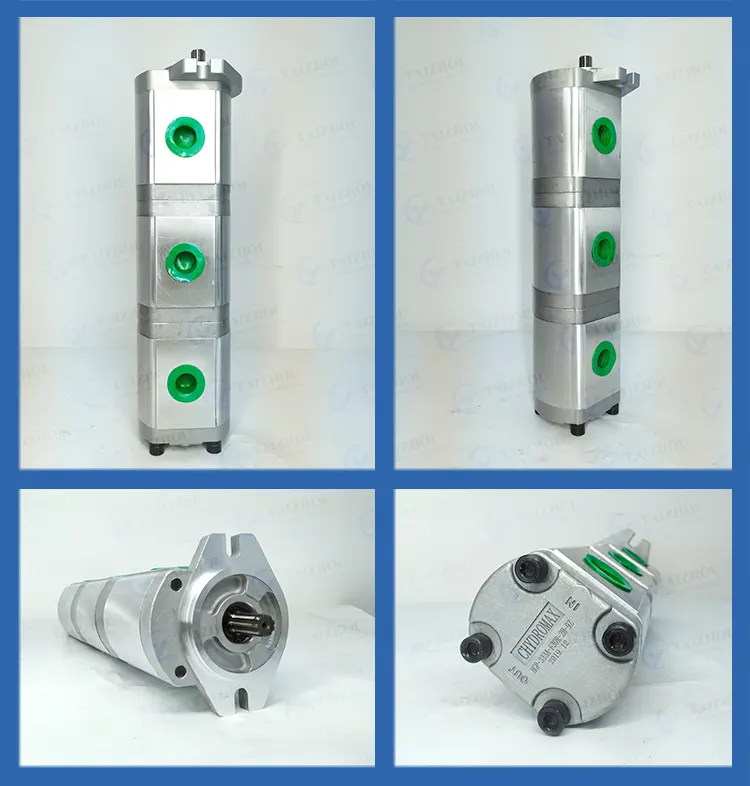

Eternal Hydraulic HGP 333A Hydraulic Gear Pump
HGP series hydraulic gear pump is a power element in the hydraulic system. The pump adopts high-precision gears and high-strength aluminum alloy casing, which makes it simple in structure, light in weight, high in efficiency, low in noise and reliable in use, etc. It is widely used in agricultural machinery, engineering machinery, construction machinery, textile machinery, mining machinery and lifting and transportation industry.
Model Code
HGP series single pump
| HGP-33A | -F | 3030 | R | -X | 2B | |
|---|---|---|---|---|---|---|
| Model | Installation | Displacement | Rotation | Shaft | Flange Type | |
| HGP-11A | F: Flange | Consult HGP-1A | (Viewed from Shaft) R:CW L:CCW |
X:Key Shaft Y:Spline S:Taper |
2B,4BD, 4DE |
2B: SAE2-bolt 4BD:DIN4-bolt 4DE:Europe 4-bolt 4JB:LJIS4- bolt |
| HGP-22A | Consult HGP-2A | 4JB | ||||
| HGP-33A | Consult HGP-3A | 2B 4BD |
||||
| HGP-333A | ||||||

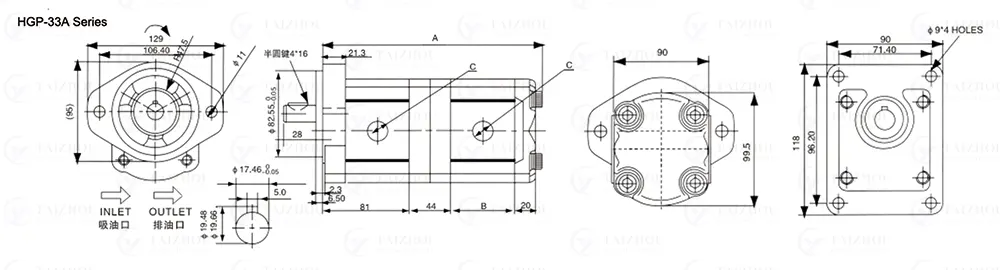

Dimension
| 型号Model | A mm(in) | B mm(in) | 型号Model | A mm(in) | B mm(in) |
|---|---|---|---|---|---|
| HGP-3A3A-*66* | 101(3.98) | 47.5(1.87) | HGP-3A3A-*1919* | 123(4.84) | 58.5(2.30) |
| HGP-3A3A-*88* | 104(4.09) | 49.0(1.93) | HGP-3A3A-*2323* | 130(5.12) | 62.0(2.44) |
| HGP-3A3A-*1111* | 109(4.29) | 51.5(2.03) | HGP-3A3A-*2525* | 133(5.24) | 63.5(2.50) |
| HGP-3A3A-*1414* | 115(4.53) | 54.5(2.15) | HGP-3A3A-*2828* | 137(5.39) | 65.5(2.58) |
| HGP-3A3A-*1717* | 119(4.69) | 56.5(2.22) | HGP-3A3A-*3030* | 141(5.55) | 67.5(2.66) |
→HGP-333A Hydraulic Gear Pump PDF
Related Product
→HGP-1A Hydraulic Gear Pump
→HGP-2A Hydraulic Gear Pump
→HGP-3A Hydraulic Gear Pump
→HGP-11A Hydraulic Gear Pump
→HGP-22A Hydraulic Gear Pump
→HGP-33A Hydraulic Gear Pump
→GPY Series Hydraulic Gear Pump
→P1 Series Hydraulic Gear Pump
→P2 Series Hydraulic Gear Pump
Application
Suitable for a wide range of widely used in agricultural machinery, engineering machinery, construction machinery, textile machinery, mining machinery and lifting and transportation industry. civil construction machinery, industrial vehicles, handling machinery, agriculture and forestry, fishery machinery and industrial automation and other devices.
Features of HGP Hydraulic Gear Pump：
- High-strength aluminum alloy casing, light weight, alloy steel hard surface gear transmission, smooth transmission.
- Composite material bearings and high-performance sealing elements, small starting torque, good sealing performance, and strong anti-fouling ability, which can work efficiently under severe working conditions.
- High efficiency: precise and detailed structural design, this series of gear pumps with high volume rate and high mechanical efficiency. Automatic compensation mechanism for axial and radial clearance, so that the oil pump can maintain high volumetric efficiency and high mechanical efficiency for a long time.
- Long service life: high performance, high abrasion resistance, bearings in high voltage, high speed occasions running, not burned.
- Light weight, compact structure,
- Body aluminum alloy, Precision gear processing, national standard grade 7 gears, small fluctuation, high pressure, low noise, stable product performance.
