Eternal Hydraulic GXQ Diaphragm Accumulator
* The bladder accumulators are mainly used in the hydraulic system of petroleum recover machinery, hydraulic machine tools, and engineering machinery.
* Its function is hydraulic control system can be found in the storage of energy, the elimination of lash, the compensation of seepage, the supply of uninterrupted energy, the transfer and maintenance of pressure.
* Its funtions in the hydraulic systems can be found in the avoidance of pipe element damage, the increase of equipment life, the reduction of losses caused by operation suspension, the stabilization of the performance of hydraulic systems, and the saving energy.

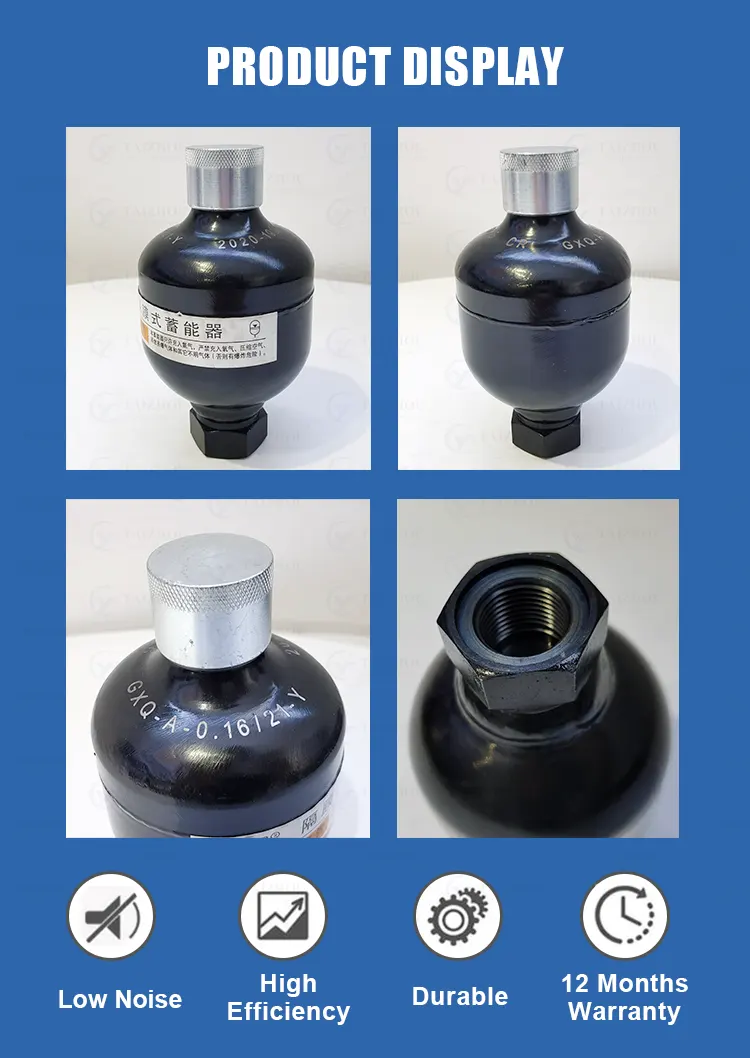

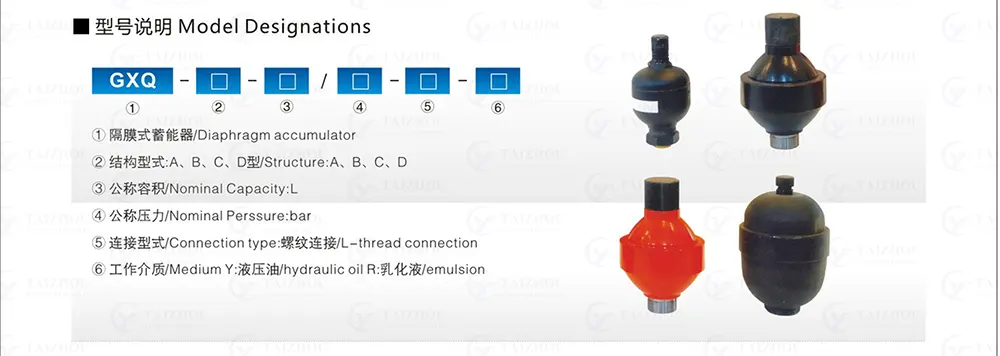

Model Code

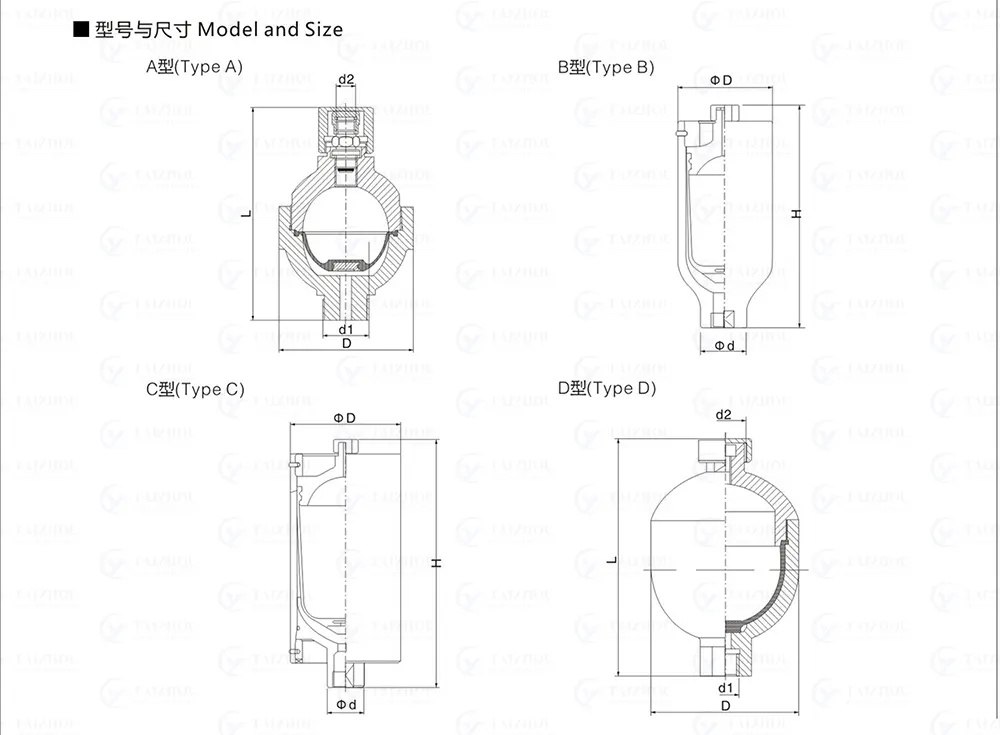

Dimension
| A型隔膜式蓄能器尺寸/A type Diaphragm Accumulator Dimension | |||||||
|---|---|---|---|---|---|---|---|
| 公称容积 Nominal Volume (L) |
公称压力 Nominal Pressure (bar) |
尺寸 Dimension(mm) | |||||
| d1 | d2 | D | L | ||||
| Metric Standard | ISO228 | Customizes | |||||
| 0.1 | 210-500 | M33x2 | G1/2 | Contact us | M14x1.5 | φ96 | 152 |
| 0.5 | 210-330 | M18x1.5 | φ116 | 185 | |||
| 1 | 210-330 | M22x1.5 | φ136 | 228 | |||
| B型隔膜式蓄能器尺寸/B type Diaphragm Accumulator Dimension | ||||||||
|---|---|---|---|---|---|---|---|---|
| 公称容积 Nominal Volume (L) |
公称压力 Nominal Pressure (bar) |
尺寸 Dimension(mm) | ||||||
| d1 | d2 | d | D | H | ||||
| Metric Standard | ISO228 | Customizes | ||||||
| 1 | 210-330 | M22x1.5 | G1/2 | Contact us | M14x1.5 | 40 | φ114 | 250 |
| 2 | 210-330 | M27x2 | G3/4 | φ152 | 275 | |||
| 3 | 210-330 | M24x2 | φ152 | 350 | ||||
| C型隔膜式蓄能器尺寸/C type Diaphragm Accumulator Dimension | ||||||||
|---|---|---|---|---|---|---|---|---|
| 公称容积 Nominal Volume (L) |
公称压力 Nominal Pressure (bar) |
尺寸 Dimension(mm) | ||||||
| d1 | d2 | d | D | H | ||||
| Metric Standard | ISO228 | Customizes | ||||||
| 1 | 210-330 | M22x1.5 | G1/2 | Contact us | M14x1.5 | 40 | φ114 | 270 |
| 2 | 210-330 | M27x2 | G3/4 | φ152 | 295 | |||
| 3 | 210-330 | M24x2 | φ152 | 370 | ||||
| D型隔膜式蓄能器尺寸/D type Diaphragm Accumulator Dimension | |||||||
|---|---|---|---|---|---|---|---|
| 公称容积 Nominal Volume (L) |
公称压力 Nominal Pressure (bar) |
尺寸 Dimension(mm) | |||||
| d1 | d2 | D | L | ||||
| Metric Standard | ISO228 | Customizes | |||||
| 0.07 | 210-330 | M14x1.5 | G1/2 | Contact us | M28x1.5 | φ65 | 120 |
| 0.25 | 210-330 | M16x1.5 | φ95 | 145 | |||
| 0.35 | 210-330 | M18x1.5 | φ100 | 167 | |||
| 0.75 | 210-330 | M22x1.5 | φ126 | 190 | |||
