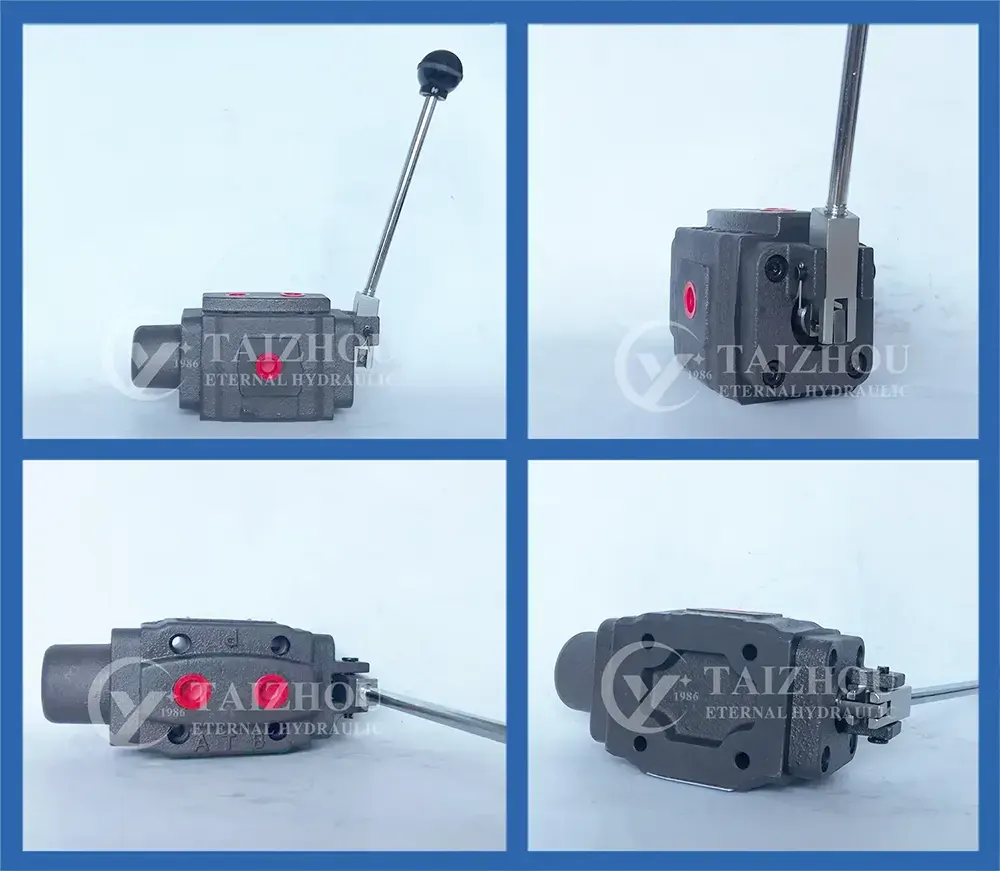

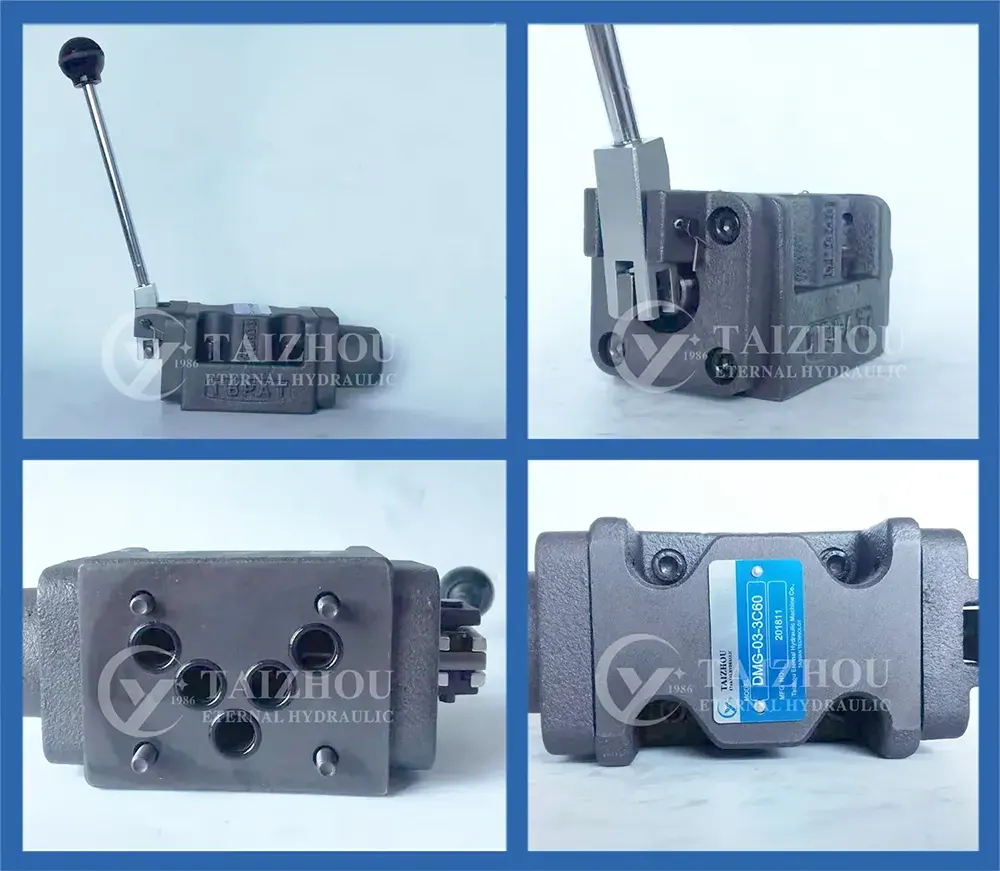

Eternal Hydraulic DM Series DMT DMG Manual Operated Directional Valve
Modle Code
DM Series Manual Operated Directional Valve
| DM | G | 02 | 3C2 | W | 10 |
|---|---|---|---|---|---|
| Sort | Mounting type | Nominal size | symbols | Spool return | Design code |
| Manually operated directional valves | G:Subplate mounting T: Thread mounting |
02:NG6 Cetop3 03:NG10Cetop5 04:NG16Cetop7 06:NG25 Cetop8 10:NG32 CetopI0 | See symbols list | W:Spring return
O: With detent |
10 |
Technical Data
| Model | DMG-02 | DMG-03 | DMG-04 | DMG-06 | DMG-10 | DMT-03 | |
|---|---|---|---|---|---|---|---|
| Max.flow rate (l/min) |
60 | 100 | 300 | 500 | 1100 | 100 | |
| Working pressure (MPa) | A,B,P port | 31.5 | |||||
| T port | 16 | ||||||
| Max. operating pressure (MPa) | 21 | ||||||
| Weight(kgs) | 1.5 | 4 | 7.5 | 11.8 | 49.5 | 4 | |
