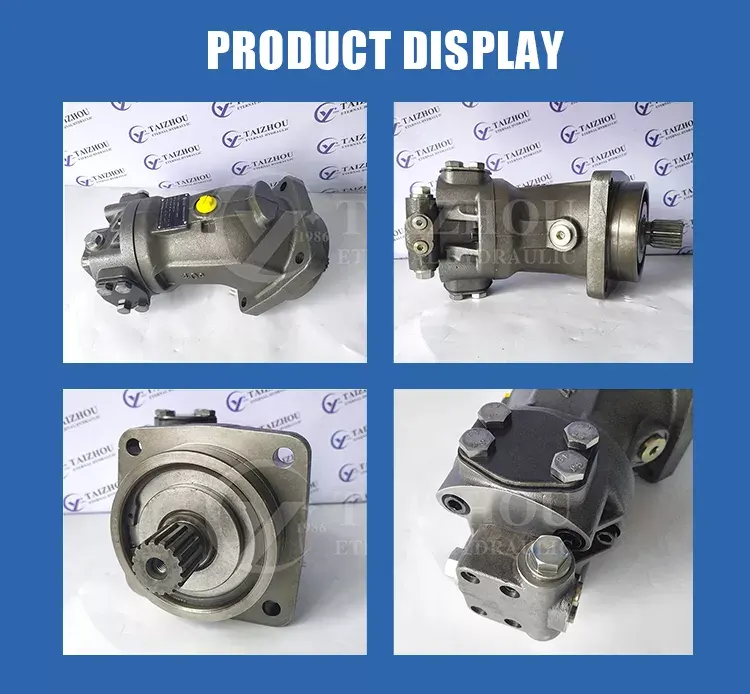

A2FM Bent Axis Hydraulic Motor

Eternal Hydraulic – Rexroth Type A2FO/A2FM Bent Axis Fixed Displacement Piston Pump/Motor

The A2FM is a fixed bent axial piston hydraulic motor with axial tapered piston rotary group in bent-axis design for hydrostatic drives in open circuits. Flow is proportional to drive speed and displacement. For axial piston units with bent-axis design, the pistons are arranged diagonally with respect to the drive shaft.
In an open circuit, the hydraulic fluid flows from the reservoir to the hydraulic pump from where it is fed via a directional valve to the consumer, e.g. hydraulic motor. From the consumer, the hydraulic fluid flows back to the reservoir via the directional valve.
This motor is available in sizes: 10 | 12 | 16 | 23 | 28 | 32 | 45 | 56 | 63 | 80 | 90 | 107 | 125 | 160 | 180 | 250.





Model Code

01 斜轴式结构，定量柱塞单元Bent-axis design, fixed JA2F
02 马达Motor M
泵 Pump O
03 排量
Displacement mL/r		 10 12 16 23 28 32 45 56 63 80 90 107 125 160 180
√ √ √ √ √ √ √ √ √ √ √
04 系列 Series 6
05 标号Index 1
06 旋转方向
Directions of rotation		 双向 bidirectional W
正转 clockwise R
反转 counter-clockwise L
07 密封Seals 氟橡胶FKM V
丁睛橡胶NBR P
08 轴伸
Drive shafts		 10 12 16 23 28 32 45 56 63 80 90 107 125 160 180
花键轴
Splined shaft DIN 5480		 √ √ √ √ √ √ √ √ √ √ √ A
√ √ √ √ √ √ √ Z
平键轴
Parallel keyed shaft DIN 6885		 √ √ √ √ √ √ √ √ √ √ B
√ √ √ √ √ √ √ P
09 安装法兰4孔
Mounting flanges (ISO 4-hole )		 10 12 16 23 28 32 45 56 63 80 90 107 125 160 180
√ √ √ √ √ √ √ √ √ √ √ B
10 后盖油口
Port plates		 10 12 16 23 28 32 45 56 63 80 90 107 125 160 180
SAE法兰油口； A和B在后侧
Ports A and B SAE,at rear end		 √ √ √ √ √ √ √ √ 01
SAE法兰油口;A和B在两侧，相对
Ports A and B SAE,opposite side		 √ √ √ √ √ √ √ √ 02
螺纹油口；A和B在两侧，相对
Ports A and B threads,opposite side		 √ √ √ √ √ √ 03
螺纹油口；A和B在两侧和后侧
Ports A and B threads, at side and rear end		 √ √ √ √ √ √ √ √ √ 04
SAE法兰油口；A/B侧面;S后面
SAE flange port, A/B at side and S at rear		 √ √ √ √ √ √ √ √ 05
侧面螺纹油口 A/B和后侧螺纹油口 S
Threaded port, A/B at side and S at rear		 √ √ √ 06
11 阀 valves 无 Void (A2FO)
不带阀 without valves(A2FM) 0



→A2FO/A2FM Fixed Bent Axial Piston Pump/Motor PDF





APPLICATION

Piston pumps are widely used in high-pressure, high-flow, high-power systems and where the flow needs to be regulated, such as mobile and construction equipment, engineering vehicles, heavy-duty planers, metal forming and stamping, machine tools, hydraulic presses, oilfield equipment, mining and metallurgical machinery, marine,  etc.
