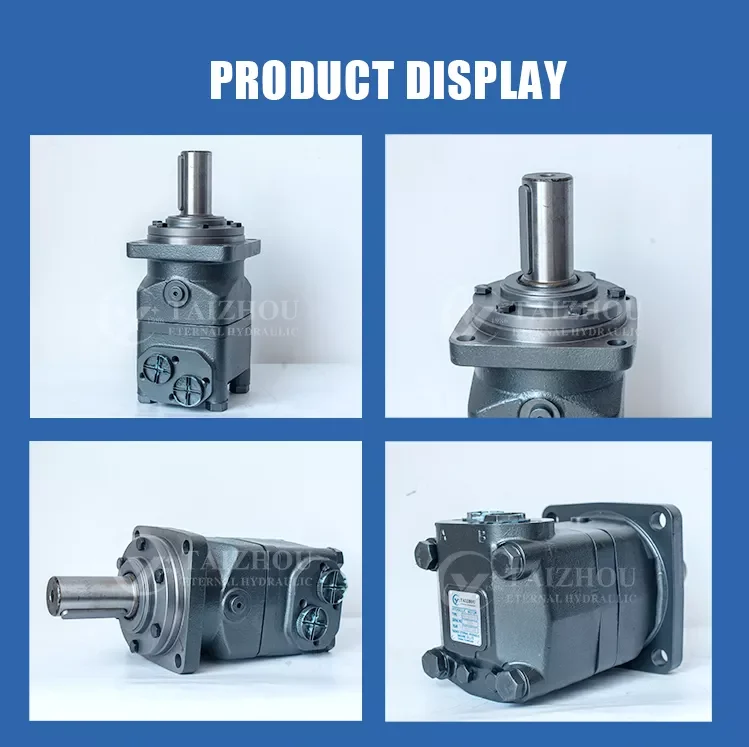

Eternal Hydraulic OMT Hydraulic Orbital Motor
Hydraulic orbital hydraulic motor is one type of high torque low speed hydraulic motors, with high efficiency and long life. Eternal OM series hydraulic orbital motor is interchangable with the international brand, like Danfoss, Char-Lynn, Eaton, Parker, M+S…
Model Code
OMT Orbit Motor
| OMT | -315 | J | A1 | P1 | D |
|---|---|---|---|---|---|
| 系列 Code |
排量 Displacement |
油口位置 Port Position |
安装法兰及止口 Mounting Flange&Spigot |
输出轴 Shaft |
油口 &泄:油口 Inlet&Outlet and Drain Port |
| OMT | 160,200,230, 250,315,400, 500,630,800 |
J D E | 参照下图 See Below Drawing |
||
Dimension
Technical Data
| 型号 Type |
OMT-160 | OMT-200 | OMT-230 | OMT-250 | OMT-315 | OMT-400 | OMT-500 | OMT-630 | OMT-800 | |
|---|---|---|---|---|---|---|---|---|---|---|
| 排量 Displacement(ml/r) |
161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| 最大压降 Max.Pressure.Drop(Mp a) |
连续cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| 间断int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| 尖峰peak. | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| 最大扭矩 Max.Torque(N.m) |
连续cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| 间断int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| 尖峰peak. | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| 转速范围(连续) Speed.Range(cont)(r/min) |
625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 | |
| 最大流量(连续) Max Flow(cont)(L/min) |
100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | |
| 最大输出功率(连续) Max.output.Power(cont)(Kw) |
27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 | |
| 重量 Weight(Kg) |
19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
→OMT Series Hydraulic Orbit Motor PDF
Related Product
High Torque Low Speed Hydraulic Motor:
→OMS Series Hydraulic Orbit Motor
→OMR Series Hydraulic Orbit Motor
→OMV Series Hydraulic Orbit Motor
→OMM Series Hydraulic Orbit Motor
→OMH Series Hydraulic Orbit Motor
Power Steering Unit:
→BZZ Series Power Steering Unit
→10 Series Power Steering Unit
Application of Hydraulic Orbit Motor
Widely used in agricultural machinery, municipal vehicles, forestry equipment, material handling equipment, engineering construction machinery, storage equipment, etc.
- Agriculture
Farmers need agricultural machines that deliver the same high productivity every season. Hydraulic solutions from Eternaal ensure world-class performance from each machine, and a comfortable, stress-free working environment for their operators.
- Construction
Space is limited on construction sites, and there are people working everywhere. Contractors need machines that can safely maneuver in a tight spot. At the same time they still need to be powerful enough to get the job done. We deliver the components, software, and controls that enable your machines to run safely, efficiently and effectively.
- Crane and material handling
Cranes and other large handling machines are required to operate within very specific load ranges. We provides pressure transmitters that supply load limiting systems with crucial data, safeguarding your equipment, your load, and your operator.
- Forestry
Rough, sloping terrain and cramped working conditions call for robust and reliable forestry machines. We make sure you can manage everything from cutting trees and transport to preparing the forest floor for replanting. We have the smart hydraulic solutions your machines need for precise and efficient forestry operations.
- Heavy machinery
Think about the heaviest challenges in the open mining, road building and construction industry. Tasks such as cutting through rock or the Arctic permafrost; compacting thick layers of hot asphalt. As well as lifting huge, prefabricated wall panels into place.
- Lawn and turf
Lawn and turf machines must adapt to their surroundings and the season – becoming sweepers or snow blowers as required. We make hydraulic solutions to provide that flexibility and ensure safe and efficient operation.
- Offshore oil and gas applications
Upstream Offshore Oil and Gas activities are making up nearly 30% of global crude oil production. These are some of the harshest operating environments on the planet. Drilling in waters up to 3,000 meters deep requires equipment that is reliable and safe. this can help to maximize operating productivity and prevent unexpected downtime.
- Onshore oil and gas applications
Onshore Oil and Gas activities are making up the majority of the world’s total oil production. These require a great deal of flexibility and scalability. A variety of oil reserve types onshore equipment needs to be flexible and robust. Due to a typically much greater number of oil wells per reserve than offshore.
- Road building
Advanced hydraulic systems from Eternal deliver the machine performance that ensures road builders can meet their deadlines.
- Wheel loaders
Work with us on new power solutions and experience wheel loader design in a new uplifted way.
- Winches
Winches are used for a range of applications all over the world. Eternal hydraulics deliver smooth, safe control.
Features of OMT Hydraulic Orbital Motor
- Smooth running over the entire speed range
- Constant operating torque over a wide speed range
- High starting torque
- High return pressure without the use of drain line (High pressure shaft seal)
- High efficiency
- Long life under extreme operating conditions
- Robust and compact design
- High radial and axial bearing capacity
- For applications in both open and closed loop hydraulic systems
- Suitable for a wide variety of hydraulics fluid
